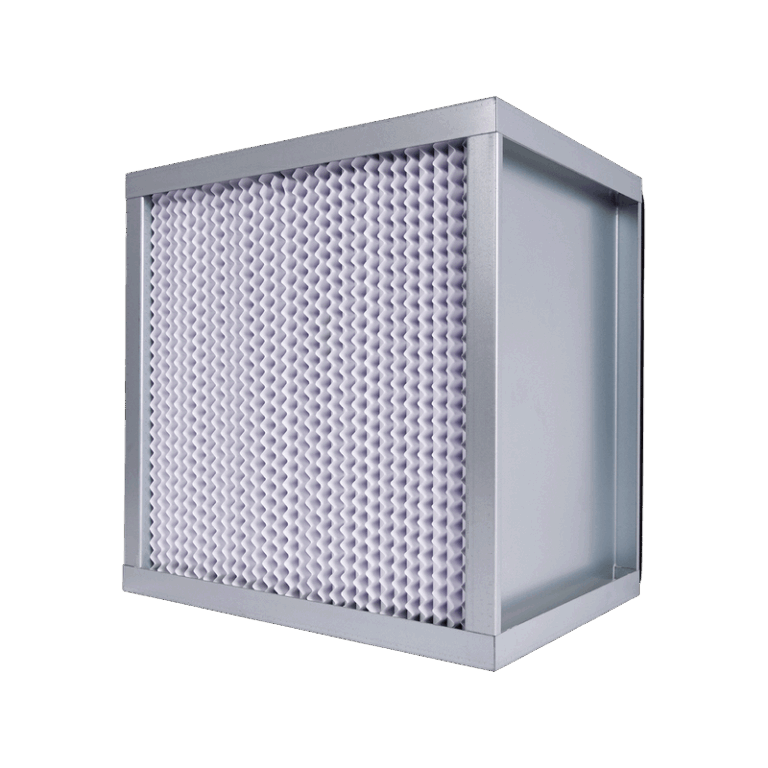

Product Brief
The filter is made of two layers of glass fiber: the air inlet side uses relatively coarse fibers, while the air outlet side uses finer fibers.The unique two-layer high-density glass fiber filter media design ensures full utilization of the filter media area during ventilation, enabling the media to capture dust particles across the entire airflow direction and thereby fully realizing its entire dust-holding potential. This both extends the filter’s service life and minimizes operating costs.
Product Features
Aluminum separators; the frame is available without flange, with a single flange, or with a double flange, with a flange thickness of 20 mm
Uses ultra-fine glass-fiber filter paper
The separator-type design delivers high efficiency, low resistance, and high dust-holding capacity
Suitable for variable-air-volume (VAV) systems
Application Scenarios
Commercial buildings; healthcare; museums and historical sites; data centers; general industrial ventilation; biopharmaceutical; food and beverage; microelectronics; schools and universities
Product Efficiency
F6、F7、F8、F9
Material Table
| Frame | Stainless steel / Galvanized iron / Aluminum plate |
| Optional frame thickness | 80 mm / 150 mm / 220 mm / 292 mm |
| Filter media | Water-resistant glass fiber |
| Separator | Aluminum foil paper |
| Sealant | Polyurethane |
